01
Flatbed cutting & creasing dies
Laser-cut die boards fitted with cutting, creasing, perforating and partial-cut rules — for folding cartons, corrugated board and labels.
Cutting & creasing die plant · Riyadh
Cutting & creasing dies, laser-precise
We manufacture flatbed and rotary cutting & creasing dies for corrugated, print and packaging plants — from laser-cut die boards and automatic rule bending to counter plates, all under one roof in Riyadh.
01Services
Everything a die needs, from raw board to press-ready
Integrated services in one plant. Your drawing never travels between workshops, and one team owns the quality end to end.
02
Rotary dies
Curved die boards cut on rotary CNC, with 4-point rules bent automatically — built for high-speed rotary lines.
03
Counter plates
CNC-milled crease channels in pertinax plates for clean, consistent folds, and in steel for long runs.
04
Samples & prototypes
Box samples cut on a digital cutting table before the die is made — so you can approve design and fit before investing in tooling.
Featured service
Steel counter plates
We mill the crease channels directly into a steel plate on a precision CNC machine, instead of conventional pertinax, for lines that run non-stop.
Request a steel counter plate- Much longer service lifeHandles long runs without the crease channels wearing out.
- Dimensional stabilityWon't expand or shrink with heat and humidity, so it stays matched to the die.
- Clean creases, first sheet to lastSharp, consistent fold lines for the whole run.
- Lower long-term costFewer plate replacements and less machine downtime.
Die maintenance & re-ruling
We replace worn rules and ejection rubber, and re-rule your existing dies to get them back into production.
02Capabilities in numbers
Technical specs, not marketing claims
Die board cutting — 2000 W CO2 laser L-01
1520×2400mm
Maximum cutting area for flatbed die boards.
Rotary board cutting R-02
Ø800/3000mm
Diameters up to 800 mm, lengths up to 3000 mm.
Automatic rule bending B-03
2·3·4pt
2, 3 and 4-point rules, up to 50 mm high.
Digital sample cutting S-04
2500×1600mm
Table size for samples and prototypes.
CNC counter-plate milling C-05
1200×1070mm
Milling table size.
RulesGenuine Austrian Böhler steel rules
Plus selected Chinese rules, matched to the application and budget.
BoardUV-coated die board
A moisture-resistant surface that keeps dimensions stable.
Plant380 V / 60 Hz power
Industrial infrastructure ready for continuous production.
03How we work
From drawing to die in six steps
Every order gets a technical review first, so you know the price and delivery date before we cut anything.
- 01of 06
Send your drawing
Share a DXF, DWG, AI or PDF file — or the physical box sample.
- 02of 06
Technical review & quote
We check lines, dimensions and board grade, then send your quote and delivery date.
- 03of 06

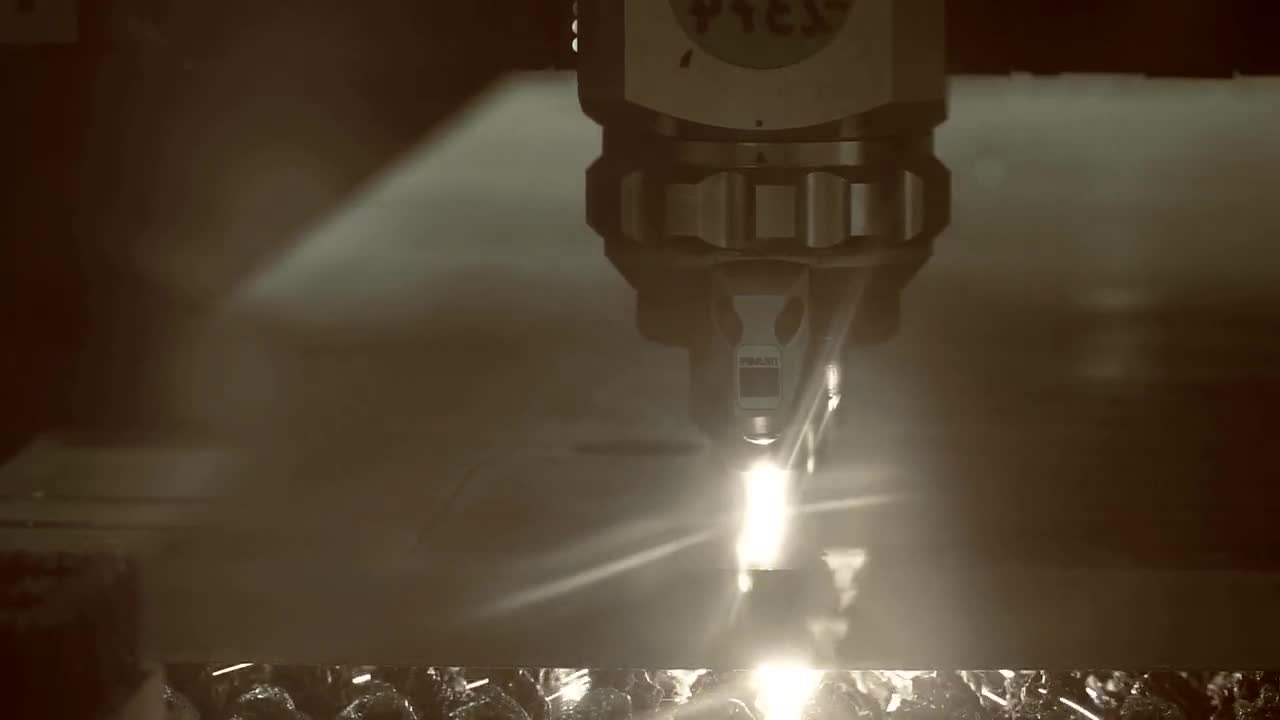

Laser-cut the board
The flatbed board or curved rotary board is cut with high precision.
- 04of 06
Bend & fit the rules
Cutting and creasing rules are bent automatically and fitted to the drawing.
- 05of 06
Rubber & counter plate
Ejection rubber is fitted and the matching counter plate is milled.
- 06of 06
Inspect & deliver
Every die is inspected before it leaves the plant, delivered ready for your press.
04Prepare your file
A clean file means an accurate die and a faster quote
- 1
The right format
We accept DXF, DWG, AI and PDF files (vector, not raster images).
- 2
One colour per line type
Cut lines in one colour, crease lines in another, and perforations — if any — in a third.
- 3
Millimetres, at 1:1 scale
No scaling up or down, so the die matches the drawing exactly.
- 4
Material & machine details
Board type and caliper, plus your die-cutter model and its cutting area.
- or
No drawing? Send us a finished box
We unfold it, take the measurements and prepare the die drawing ourselves.
05Our work
Every die that leaves our plant carries our mark
We engrave the Laser Experts mark on every die and counter plate, so you always know its source and can come back to us for maintenance or reorders.
A mark that guarantees the source of your die and makes maintenance and reorders easy.
06Industries we serve
Dies for every material that gets cut and creased
From heavy corrugated to thin labels and foam, we match rule type and height to the material.
Corrugated board
Folding cartons
Food packaging
Pharmaceutical boxes
Commercial print
Labels
Foam & EVA
Gaskets & seals
07Why Laser Experts
A new plant, modern equipment and a clear way of working
We started from what a production manager needs: an accurate die, a delivery date you can plan around, and a technical contact who answers.
Made in Saudi ArabiaA Riyadh plant supporting local manufacturing under Vision 2030
- 01
Laser precision
Die boards are laser-cut straight from your drawing, so rule slots are consistent and repeatable.
- 02
Fast delivery across the Kingdom
Made in Riyadh — no international freight or customs waits, with delivery to cities across Saudi Arabia.
- 03
Genuine materials
Original European steel rules and UV-coated die board, with selected economy options when needed.
- 04
Technical review before production
We review every drawing and flag issues before cutting — not after the die is on your press.
08Clients in numbers
Trust that grows with every die we deliver
Plants and print shops across the Kingdom rely on us for their dies — and every new order starts with the same technical review.
Orders delivered
0
Flatbed, rotary, counter plates and samples
Clients
0
Plants and printers working with us
Sales
0M SAR
Total value of delivered orders
Repeat-order rate
0
Of clients come back with a new order
Trusted by
Client logo
Client logo
Client logo
Client logo
Client logo
Client logo
How long does it take to make a die?
It depends on the die's size, complexity and rule count. We confirm an exact delivery date with your quote, after reviewing the drawing.
What files do you need?
DXF, DWG, AI or PDF at 1:1 scale in millimetres, with cut and crease lines in different colours. Alternatively, send us a finished box sample.
Do you make rotary dies?
Yes. We cut curved boards on rotary CNC for diameters up to 800 mm and lengths up to 3000 mm, and bend 4-point rules automatically.
Do you offer die maintenance and re-ruling?
Yes. We replace worn rules and ejection rubber and re-rule existing dies. Send us a photo of the die or bring it to the plant for inspection.
Do you deliver outside Riyadh?
Yes, we deliver across Saudi Arabia. Delivery cost and timing are stated in your quote.
10Request a quote
Send your drawing — we'll reply with price and date
The clearer the details, the more accurate the quote. Fields marked * are required.
